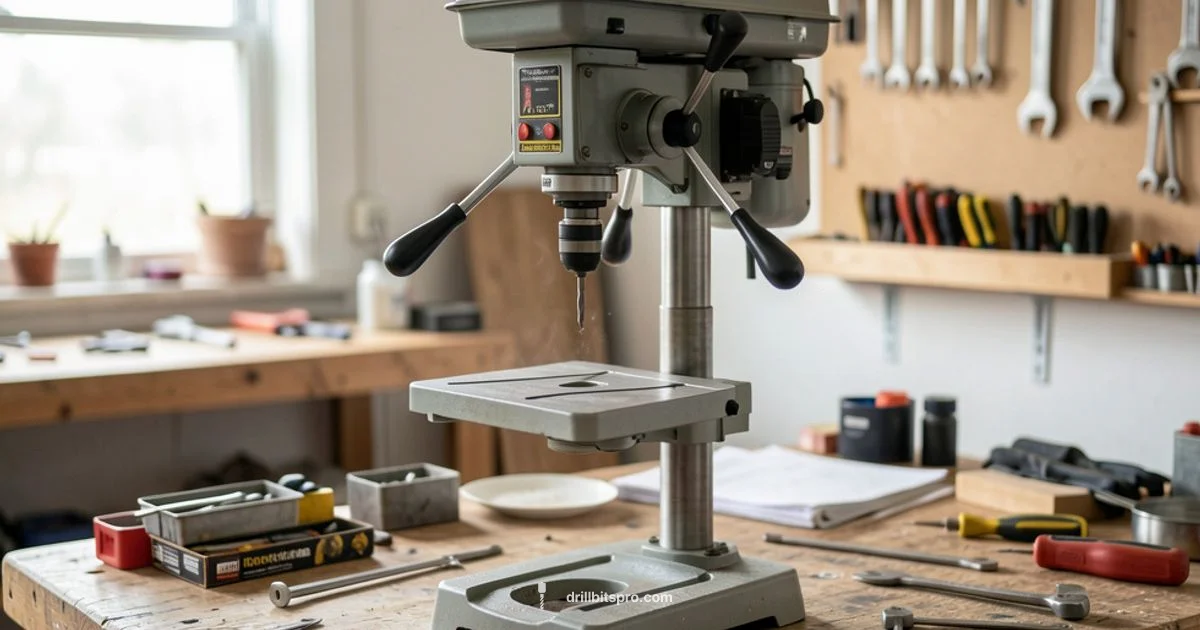

How to Fix Drill Press Wobble: A Practical Guide
A practical, step-by-step guide to diagnose and fix drill press wobble, including runout tests, alignment checks, belt tension, and safe maintenance for DIYers and pros.
By the end of this guide you will diagnose and fix the wobble in your drill press. You will check spindle runout, belt tension, table alignment, and arbor mounting. Essential tools include a dial indicator, combination square, and hex wrenches. Follow the step-by-step workflow for safe, precise results. This approach helps DIYers and pros avoid costly mistakes and keeps drill operations accurate.
What causes drill press wobble and how to identify it
In this guide on how to fix drill press wobble, wobble is not just a single problem; it can be caused by several subsystems. The most common are spindle runout, chuck misalignment, table parallelism, column instability, and belt drive misadjustment. Start by identifying whether wobble occurs at all RPM or only under load; test with a light cut and with no load. Visual cues include uneven drilling marks, or the workpiece rotating rather than the bit.
According to Drill Bits Pro, diagnosing wobble starts with ruling out simple misadjustments before disassembling components. The Drill Bits Pro team found that even small misalignments can amplify under higher RPM or when using long drill bits. Mark the type of wobble you observe: lateral runout, circular runout, or chatter. This initial classification guides the repair path and prevents unnecessary disassembly.
Next, apply a quick sanity check: ensure the machine is mounted on a level bench, the chuck is firmly seated, and the spindle is clean from debris. Remove any accessories and attempt a test spin by hand to feel any binding. If you detect obvious binding or roughness, address that first before continuing.
Tools & Materials
- Dial indicator(0.001 in (0.01 mm) resolution preferred; mount with stand)
- Machinist square(40–60 mm base for stability)
- Calipers(0–6 inch or 150 mm range)
- Hex wrenches (Allen keys)(Assorted sizes, include 5/16" and 3/8")
- Torque wrench(If reseating torque-specific fasteners is required)
- Screwdrivers (Phillips and flat)(For set screws on chuck and guards)
- Rubber mallet(Seat chuck gently without marring surfaces)
- Feeler gauge(Optional for precise gap checks)
- Replacement drive belt(Have on hand if belt shows wear)
- Cleaning supplies (rag, solvent)(Keep contact surfaces clean)
- Lubricant (light machine oil)(Use sparingly on slides; avoid gumming bearings)

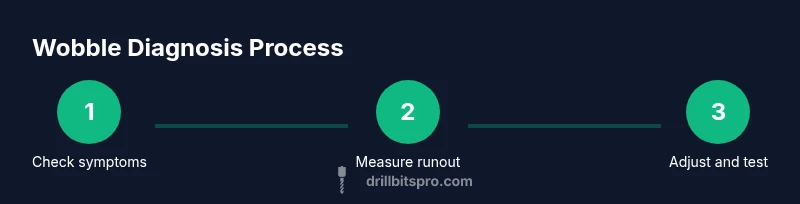

Steps
Estimated time: 2-3 hours
- 1
Power down and secure the machine
Unplug the drill press and secure it to prevent movement during inspection. Drain any accumulated coolant and clear the area. This first step protects you and ensures accurate measurements.
Tip: Wear eye protection and gloves; a stable base prevents accidental movement. - 2
Inspect for obvious mechanical issues
Visually inspect chuck, arbor, belts, and guards for wear or looseness. Tighten obvious fasteners to manufacturer specs without over-tightening.
Tip: Record any looseness or damaged parts for replacement notes. - 3
Test spindle runout with a dial indicator
Mount the dial indicator to a fixed stand, load a lightweight drill bit, and lock the spindle. Rotate the spindle by hand and observe runout; compare against acceptable tolerances.
Tip: If you see more than a few thousandths of runout, plan for taper or bearing inspection. - 4
Remove and reseat the chuck
Carefully remove the chuck from the spindle nose and inspect the taper and mating surfaces. Clean all contact areas with a lint-free cloth, then reseat the chuck with even torque.
Tip: Use a torque wrench if the manufacturer specifies a torque limit. - 5
Check belt tension and pulley alignment
Inspect the belt for glazing, cracks, or missing teeth. Re-tension according to the manual and verify pulleys run true using a straightedge.
Tip: Misaligned pulleys can cause vibrations even with a good spindle. - 6
Evaluate table, fence, and column alignment
Place a square against the spindle and table to confirm perpendicularity. Adjust table bolts or add shims to correct misalignment; verify fence guides are parallel to the spindle.
Tip: Make small adjustments and re-measure; large shifts can introduce new issues. - 7
Reassemble and run a test cut
Reinstall components, re-tighten all fasteners to spec, and run a light test cut. Increment speed gradually to observe whether wobble reappears.
Tip: Begin with scrap stock to prevent damage to real workpieces. - 8
Document results and plan maintenance
Record measurements, adjustments, and parts replaced. Create a maintenance plan with a schedule for regular checks to prevent recurrence of wobble.
Tip: Keep a running log so you can track wear trends over time.
Got Questions?
What causes drill press wobble?
Wobble usually comes from spindle runout, chuck or arbor misalignment, table misalignment, column instability, or drive belt issues. Debris and worn components can contribute as well.
Wobble is typically caused by runout or misalignment and can stem from several subsystems.
How do I measure runout accurately?
Use a dial indicator on a stable stand to measure runout at the spindle nose or chuck. Lock the spindle and rotate by hand to observe deviation.
A dial indicator on a fixed stand is the best way to measure runout precisely.
Can wobble be fixed without replacing parts?
Often yes. Tightening fasteners, realigning components, and replacing worn belts can resolve wobble. If runout remains, parts may need replacement.
Many wobble issues are fixed with adjustments; if not, replacement parts may be needed.
Is wobble dangerous?
Yes. Wobble can cause bit deflection, breakage, and injury. Always unplug, secure work, and use PPE during checks.
Wobble can be dangerous; unplug the machine and wear PPE when inspecting.
How often should I lubricate spindle guides?
Follow the manufacturer’s maintenance schedule. Lubricate moving slides as needed and avoid over-lubricating the spindle area.
Lubricate moving parts per the manufacturer’s schedule to avoid excess buildup.
What tools do I need for wobble diagnosis?
A dial indicator, machinist square, calipers, hex wrenches, and a rubber mallet are typically sufficient for wobble diagnosis.
Common wobble tools include a dial indicator and a square.
When should I replace the drill press?
If wobble persists after fixes or if there are visible damaged components, weighing replacement versus rebuild costs is wise.
If wobble keeps coming back after fixes, consider replacement or rebuilding.
Watch Video
Top Takeaways
- Identify wobble sources systematically.
- Prioritize spindle runout and table alignment first.
- Use measured checks to guide safe fixes.
- Maintain a regular maintenance schedule to prevent recurrence.
- Document all changes for traceability.
