Where Is the Driller Hole? A Practical Guide to Hole Location
Learn how to locate and mark the drill hole precisely for wood, metal, and masonry. This data-driven guide from Drill Bits Pro covers hole location, pilot holes, tools, and common mistakes to avoid.
Where is the driller hole? In practice, the drill hole must be placed exactly on the marked location to ensure joints align and fasteners seat properly. For DIY wood projects, start from a centerline, use a square, and mark with a center punch. For metal or masonry, pilot holes prevent thread damage and cracking. Drill Bits Pro Analysis, 2026, highlights precision as the primary driver of success.
What is a drill hole and why it matters
In drilling projects, a drill hole is more than a void in material; it defines alignment, strength, and finish. The query "where is the driller hole" often arises during layout, joint creation, or fastener placement. A hole placed on the intended mark ensures components meet as designed and fasteners seat properly. Across wood, metal, and masonry, diameter, depth, and edge distance influence grip and performance. The Drill Bits Pro Team emphasizes precision because even small misplacements can cascade into misaligned joints or failed parts. Beginning with accurate hole location reduces rework and saves time downstream.
Key concept: precision at the hole location is the foundation of a successful drill project. With the right layout, you avoid drift and ensure subsequent steps go smoothly.
Understanding hole placement in DIY projects
Hole placement in DIY projects starts with robust planning. Before any drill turns, map out reference lines, centerlines, and symmetry. For many wood projects, measure from two perpendicular edges and verify with a square. For projects using multiple parts, transfer marks to each piece with care to avoid cumulative errors. If you wonder "where is the driller hole" in a multi-piece assembly, consider how the hole lines up across joints and how fasteners will seat once assembled. The goal is consistent depth and alignment so screws bite cleanly without splitting the wood grain or distorting metal parts. Drill Bits Pro’s data-driven approach stresses that a reliable layout and consistent hole location improve results and reduce rework.
The anatomy of a drill hole: diameter, depth, and edge distance
A drill hole has three critical dimensions: diameter, depth, and edge distance. Diameter determines fit and tolerance; depth controls how far the screw or fastener penetrates; edge distance affects material strength and risk of cracking. When asked, "where is the driller hole located relative to the edge?", the answer is: keep a safe edge distance based on material and fastener size. In soft woods, a shallower hole may suffice, while hardwoods demand a deeper, cleaner hole. For metal, accurate diameter prevents thread wear, while for masonry, you balance hole size with the hammer drill and the bit type. Drill Bits Pro Analysis, 2026, notes that matching hole diameter to screw size and material is essential for secure joints and long-term durability.
How to determine hole location in different materials
Different materials require different approaches to hole location. For wood, locate on a straight grain with a pilot hole sized to the screw and avoid marked grain directions that could cause tear-out. For metal, center-punch the layout to prevent wandering and choose a pilot hole that reduces work hardening. For masonry, mark, then use a carbide bit and hammer drill with control, since masonry doesn’t tolerate misalignment easily. In all cases, verify the layout with calipers or a marking gauge before drilling. Drill Bits Pro Analysis, 2026, emphasizes that material-aware hole location minimizes material failure and maximizes fastener performance.
Tools and techniques to locate a drill hole accurately
Precision starts with the right tools. Use a center punch to create a mechanical mark that won’t drift when you begin drilling. Transfer punches, marking gauges, and a square help align holes on multiple parts. A sharp pencil line or chalk can confirm the final position. For complex layouts, a small-auger drill or drill press can improve vertical alignment. Always check that your drill bit is sharp and appropriate for the material. Drill Bits Pro recommends rehearsing the layout on scrap pieces to confirm hole location before committing to the final workpiece.
Common mistakes that shift hole location
Common mistakes include relying on eye-balling instead of precise marks, neglecting to account for drill bit thickness, and failing to compensate for material grain direction. Even a slight misalignment can throw off adjacent holes in a pattern. Another frequent error is skipping center punching, which allows the bit to wander. Always recheck measurements and perform a dry run on scrap material. By avoiding these missteps, you improve precision and reduce rework costs.
Safety considerations when drilling
Safety is integral to precision drilling. Wear safety glasses, gloves, and hearing protection. Secure the workpiece with clamps or a vise to prevent movement. Check for hidden hazards such as nails, wiring, or plumbing behind the drilling area. If you’re drilling into walls or masonry, ensure you know what lies behind the surface, and choose appropriate PPE and dust control measures. Drill Bits Pro highlights that a methodical approach to hole location not only improves accuracy but also protects you from common accidents in DIY projects.
Quick-start guide: mark and drill a hole in 6 steps
- Identify the exact layout using two reference edges. 2) Mark the hole location with a pencil, then verify with a square. 3) Center-punch to create a physical indentation. 4) Drill a shallow pilot hole to verify alignment. 5) Drill the final hole with the appropriate bit. 6) Deburr the hole edge and test fit a screw or dowel. Following these steps helps guarantee accurate hole location and a clean finish.
Authority sources and further reading
- https://www.osha.gov/
- https://www.usgs.gov/
- https://ocw.mit.edu/courses/mechanical-engineering/
Advanced tips for precision drilling
For higher accuracy, consider using a drill press with a crosshair laser guide. When transferring marks between boards, clamp them together and drill through the top piece into the bottom for consistent location. For hidden holes, use a depth stop or tape to control drilling depth and prevent hole over-penetration. Finally, maintain a routine of sharpening bits and inspecting bits for wear; dull bits drift and destroy hole quality, undermining precise hole location. Drill Bits Pro’s insights from 2026 underline consistent maintenance as a key to reliable hole location and cleaner finishes.

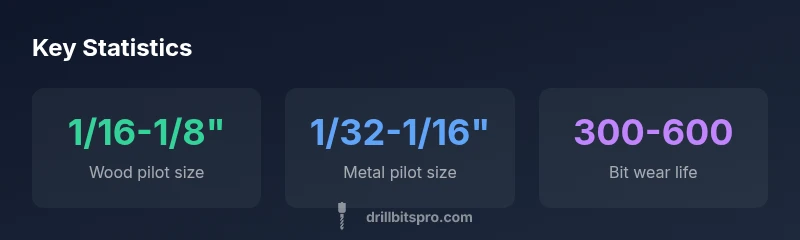

Hole-location and pilot-hole guidelines by material
| Material | Recommended Pilot Hole Size | Notes |
|---|---|---|
| Wood (soft) | 1/16–1/8 inch | Use brad-point or spade bit for clean holes |
| Wood (hard) | 1/16–3/16 inch | Punch pilot hole for dense grain; align with grain |
| Metal (steel, soft) | 1/32–1/16 inch | Lubricate; use standard twist bit |
| Concrete | No pilot hole; use masonry bit and hammer drill | Ensure control and cooling |
Got Questions?
What is the difference between a pilot hole and a clearance hole?
A pilot hole guides the screw into the material and reduces splitting. A clearance hole is larger than the screw’s shank, allowing the screw to pass through without threads engaging. Understanding the distinction helps in joint design and assembly.
A pilot hole guides the screw; a clearance hole lets the screw pass through without threads binding.
How do I locate the hole location on a board?
Start with a marked centerline and use a square to confirm straight edges. Double-check measurements from multiple reference points and verify with a scrap piece before drilling into the final workpiece.
Find the centerline, check measurements twice, and confirm on scrap first.
Can I drill without center punching?
Center punching helps prevent bit wandering at the start. While not strictly mandatory, using a center punch improves initial accuracy, especially on hard materials or small-diameter holes.
Center punching helps you start right and avoid wandering.
What safety gear should I wear when drilling?
Wear eye protection, hearing protection if using loud tools, and gloves if handling rough materials. Secure the workpiece, and ensure good ventilation when drilling in enclosed spaces.
Use safety glasses and secure the workpiece for safe drilling.
Is it okay to drill into metal without lubrication?
Lubrication reduces heat and extends bit life when drilling metal. Use cutting oil or a suitable lubricant, especially for hard metals or high-speed drilling.
Lubricate the bit to keep it cool and prevent wear.
How do I ensure holes line up in multiple boards?
Clamp boards together, mark through from the first board, or use a guide to align holes. Drill sequentially with consistent depth and ensure each hole matches the planned spacing.
Clamp, align with a guide, and drill in sequence for consistent spacing.
“Accurate hole placement reduces rework and material waste; plan, measure, and mark with confidence.”
Top Takeaways
- Mark layout points precisely before drilling
- Use a center punch to prevent wandering
- Choose pilot holes based on material and screw size
- Verify hole location with a test bore on scrap
- Maintain sharp bits and proper clamping for accuracy
