How to Tell Drill Bits for Metal: A Practical ID Guide
Learn to identify metal-drilling bits by substrate, tip geometry, shank, and coatings. This practical guide from Drill Bits Pro walks through visual clues, testing methods, and best practices for choosing the right bit for steel, stainless, and aluminum.
This guide teaches you how to tell drill bit for metal by inspecting substrate (HSS, cobalt, carbide), tip geometry (118° vs 135°), coating options, and shank style. You’ll learn quick visual clues, supported by safe testing and practical selection tips for common metals.
How to tell drill bit for metal: Visual clues and basics
Identifying a drill bit for metal starts with three reliable clues: the material the bit is made from, the angle and shape of the tip, and the shank configuration. According to Drill Bits Pro, starting with substrate helps you distinguish whether you’re looking at standard high-speed steel (HSS), a cobalt alloy, or a carbide-tipped option. From there, assess the point angle and flute count to infer intended hardness and precision. This approach pairs visual inspection with practical checks and avoids guessing when you’re dealing with a mixed bits bin. The result is a confident, faster ID of the right bit for metalworking tasks across steel, stainless, and aluminum projects.
Tools & Materials
- Calipers or micrometer(Measure diameter and shank diameter to confirm size compatibility.)
- Safety glasses and gloves(Protect eyes from chips and protect hands during handling.)
- Lubricant or cutting fluid(Helpful for steel work to reduce heat and wear; use sparingly.)
- Vise or clamp(Secure the workpiece to prevent drift while testing bits.)
- Measuring scale or bit gauge(Useful for quick size checks when labels are faded or absent.)
- Hammer drill/drill with variable speed(Use the appropriate speed setting for metal drilling; avoid overloading.)

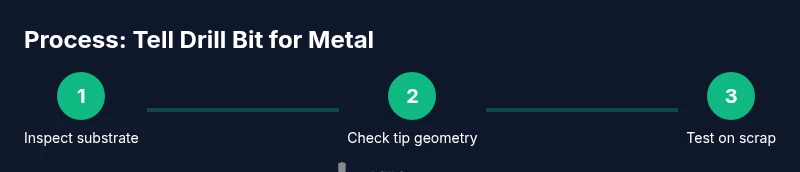

Steps
Estimated time: 30-45 minutes
- 1
Inspect the bit visually
Hold the bit by the shank and look for the substrate color, coating, and overall finish. A bright, plain finish often indicates plain HSS, while a darker tone may suggest cobalt or carbide-tipped construction. Coatings such as TiN or TiAlN are applied to reduce friction and heat buildup, which helps you narrow down the type. This first visual pass sets the foundation for accurate identification.
Tip: Use good lighting and a loupe if available to spot subtle coatings or engravings. - 2
Check tip geometry
Examine the point angle. A common metal-working geometry is 118 degrees for general purpose, and 135 degrees for tougher metals or harder workpieces. Count the flutes; most metal bits use two flutes, with three or more in longer, more aggressive bits. Tip geometry heavily influences heat generation and accuracy, so match it to the material you’re drilling.
Tip: A mag glass helps reveal the exact angle when the bit is oriented tip-up. - 3
Inspect the shank and fit
Look at the shank style—round shanks fit most standard chucks, while hex shanks are common for quick-change systems. Verify the shank diameter matches your drill chuck capacity. Mismatched shanks can slip or fail, especially under high torque.
Tip: If you’re unsure of chuck compatibility, measure the bore and compare to the bit’s shank diameter. - 4
Identify coatings and markings
Coatings like TiN or TiAlN indicate a performance emphasis on heat resistance, typical for metal work. Engravings on the flute or shank may show material grade or size. If markings are faint, rely on substrate color and coating hints alongside size measurements to narrow down the type.
Tip: Don’t rely on color alone—combine with size data and scratch marks to avoid misidentification. - 5
Perform a controlled scratch/mark test
Test a small, shallow groove on scrap metal with the suspected bit at a low feed rate and slow rpm. A bit designed for metal should begin cutting cleanly with minimal smoking or resistance when properly lubricated. If it grips or clogs immediately, reassess the bit type and material.
Tip: Always use scrap material first to prevent damage to your workpiece. - 6
Match to the metal type
General steel and iron work often use plain HSS bits, while stainless steel may benefit from cobalt or carbide-tipped options, especially at higher heat. Aluminum is easier but requires sharp edges and moderate feeds. Align your bit type with the metal’s hardness, thermal demands, and required precision.
Tip: When in doubt, start with a smaller pilot hole to reduce load on the bit. - 7
Check cutting speed and lubrication
Different metals require different speeds. In practice, use the slow to moderate range for steel and stainless to minimize heat. Lubricants or minimal cutting fluid can dramatically extend bit life for steel, while aluminum benefits from lighter lubrication to prevent binding.
Tip: Always prioritize heat management over aggressive cutting; overheating dulls bits quickly. - 8
Document and store your IDs
Record the bit’s material, coating, and size after ID. Store bits in labeled cases or organizers to avoid future mix-ups. Proper storage reduces wear and helps you pick the right bit quickly on future projects.
Tip: Keep a small cheat sheet in your toolkit listing common metal bits and their best uses. - 9
Validate with a test cut
Before committing to a full hole, perform a shallow pilot hole and inspect the bit’s condition. If the bit shows excessive wear, dithering, or smoking, stop and switch to a more suitable option. This final test confirms you’ve correctly identified the bit for metal.
Tip: A pilot hole often saves time and preserves tool life on hard metals.
Got Questions?
What is the most common drill bit for metal?
The most common metal-drilling bit is the high-speed steel (HSS) twist bit. For harder metals, cobalt or carbide-tipped bits offer better heat resistance and longer life.
The most common metal-drilling bit is HSS; for hard metals, consider cobalt or carbide-tipped bits.
How can I tell if a drill bit is cobalt?
Cobalt bits are typically marketed for heat resistance and may appear darker than standard HSS. Packaging often marks cobalt (e.g., M42). If in doubt, compare markings and diameter against your drill’s capacity.
Cobalt bits usually look darker and are marketed for heat resistance; packaging may label them cobalt.
Are carbide-tipped bits good for metal?
Carbide-tipped bits offer extreme hardness and wear resistance, making them suitable for very hard metals, but they are more brittle and can chip if misused. Use them with proper lubrication and slower feeds.
Carbide-tipped bits are very hard and good for tough metals, but they can crack if mishandled.
Do I need special bits for aluminum?
Aluminum is easier to cut, but choose sharp bits and moderate speeds to avoid galling. Fast speeds with dull bits can produce heat and poor finish.
For aluminum, sharp bits and moderate speeds work best; avoid excessive heat.
What safety precautions should I take when drilling metal?
Wear eye protection, secure the workpiece, and use appropriate cutting fluid or lubrication. Keep hands away from rotating bits and use a drill press when precision is critical.
Wear safety gear, clamp the workpiece, and use the right lubrication; avoid contact with the rotating bit.
How should I store drill bits to prevent dulling?
Store bits in labeled trays or cases, keep them dry, and separate by material and size. Proper storage reduces surface corrosion and keeps edges sharp.
Keep bits in labeled cases in a dry place to protect edges.
Watch Video
Top Takeaways
- Identify substrate (HSS, cobalt, carbide) before choosing.
- Prioritize tip geometry and coating as indicators of metal suitability.
- Use proper speed, lubrication, and clamping for safety and longevity.
- Test on scrap metal before proceeding with a real workpiece.
- Store and label bits to avoid misidentification next time.
