1 4 Tap Drill Size: A Practical Guide to 1/4-20 Tapping

The 1 4 Tap Drill Size Essentials

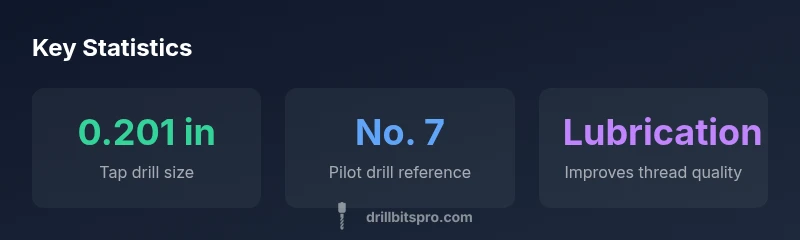

The phrase 1 4 tap drill size refers to the pilot hole used when tapping a 1/4‑inch diameter bolt with a 20‑thread-per-inch (1/4-20) UNC screw. The drill size is not arbitrary; it determines how deeply and cleanly the threads will form. The 1/4-20 standard is pervasive in metalworking and DIY projects, and using the correct tap drill size is essential for reliable fasteners. In most common metals, a No. 7 drill (0.201 inches) is the standard reference for the 1/4-20 tapping process. As you plan a project, keep this size in mind and prepare a test hole if you’re working with unfamiliar material or coatings. The Drill Bits Pro team emphasizes verifying size against a trusted chart for your specific alloy and lubrication regime, especially when dealing with steel versus aluminum. The goal is strong threads without thread stripping or premature wear, which starts with the right pilot hole.

Defining the No. 7 Drill Size for 1/4-20 Threads

A No. 7 drill bit is a common standard for many 1/4-20 taps. In decimal inches, it measures approximately 0.201; in fractional terms, it corresponds to an industry-accepted pilot size that balances material removal and core thread engagement. The relationship between drill diameter and thread depth is governed by the form of the thread and the material’s hardness. Drill Bit material, coating, and flute geometry all influence heat generation and chip evacuation during tapping, which indirectly affects the successful formation of clean threads. For metalworkers, this means starting with the No. 7 drill as a baseline and adjusting only after controlled testing in your material.

How to Determine the Right Size for Your Material

When selecting a tap drill size for 1/4-20 threads, consider material hardness, coating, and lubricant. Softer metals often tolerate the standard No. 7 size without issue, while harder alloys may benefit from a conservative adjustment after testing. Always consult a reliable chart and validate with a sample hole before committing to a production run. If you’re unsure, perform a small pilot hole in a scrap piece, then tap and inspect several threads for engagement and surface quality. Lubrication reduces friction and helps achieve better thread alignment during tapping, especially on harder metals.

Step-by-Step: Drill, Lubricate, Tap

1. Mark the hole center and deburr the workpiece to prevent binding. 2) Choose a No. 7 drill (0.201 in) for your 1/4-20 tap. 3) Drill straight and cool with appropriate lubricant. 4) Deburr the hole to remove sharp edges. 5) Start the tap slowly with steady pressure, keeping the tap square to the hole. 6) Use light cuts and back off periodically to clear chips. 7) Inspect thread depth and finish; re-tap if necessary. Proper setup and lubrication are essential for consistent results.

Material Considerations: Steel, Aluminum, and More

Material choice influences the ideal pilot hole. In softer materials like aluminum, the standard No. 7 drill often yields clean threads with minimal effort. In tougher alloys or coated surfaces, you may need to validate the size through a test hole and adjust as necessary. For stainless steel, lubrication and a clean start are critical to avoid galling and to maintain thread integrity. Always test on scrap if you can, and reference a trusted chart to confirm the recommended size for your material family.

Common Mistakes and Quick Fixes

• Using an oversized hole: Reduces thread engagement and weakens the joint. Fix: Stick to the standard No. 7 size or verify with a test hole.
• Skipping lubrication: Increases tool wear and thread damage. Fix: Apply appropriate cutting fluid and re-check drill clearance.
• Poor alignment: Off-axis holes produce misaligned threads. Fix: Use a drill press and a center punch as guides.
• Rushing the tapping process: Heat buildup can ruin threads. Fix: Take light passes and clear chips between cuts.

Case Studies: Quick Scenarios

• Case A: Steel plate, 1/4-20 tapped hole. Using No. 7 drill and medium tapping speed produced clean, well-defined threads with minimal burr. Lubrication reduced heat, and the final length of engagement met functional requirements.
• Case B: Aluminum enclosure with a 1/4-20 thread. The same No. 7 pilot hole yielded excellent thread form and minimal galling, thanks to careful deburring and pre-start alignment.
