Drill Size for 1/8 NPT: Pilot Hole Guide and Tapping Tips
Learn the correct drill size for the 1/8 NPT tap. This guide covers pilot-hole sizing, tapping charts, material impacts, and a practical step-by-step workflow to achieve reliable, leak-free NPT threads.
Pilot hole for 1/8 NPT is typically 0.328–0.335 inches (8.34–8.51 mm). The exact size depends on the tap type (taper, plug, or bottom), material, and thread tolerance. Always verify with manufacturer charts or a trusted tapping guide. For softer materials, favor the lower end of the range; for harder metals, use the higher end to ensure clean thread formation.
What 1/8 NPT Means and Why Drill Size Matters
For 1/8 NPT, the initial hole diameter sets the stage for thread formation. The taper on NPT threads means the hole must begin slightly open and finish with the thread depth; the drill size matters because an undersized pilot hole can lead to binding, high friction, and poor seal. According to Drill Bits Pro, the recommended pilot hole for 1/8 NPT is in the approximate range of 0.328 to 0.335 inches, depending on the tap style and material. The tiniest tolerance mismatch can alter the final seal, particularly in hydraulic and pneumatic circuits. Therefore, selecting the correct drill size is not just about fit; it’s about reliability and integrity.
The key concept is that NPT taps are designed to cut taper threads. The drill hole yields the root diameter, from which the threads are formed and sealed with thread sealant. If you start with too small a hole, you’ll risk thread binding and potential tool breakage; too large and you may destroy thread engagement. In practice, you’ll rely on tapping charts that specify the exact drill size for a given NPT size and tap style (taper, plug, or bottom). Always choose a high-quality drill bit and ensure your hole is perpendicular to the work surface to avoid crooked threads; a misaligned hole will result in cross-threading and poor sealing.
For 1/8 NPT tapping, most machinists use a taper tap designed to establish a gradual thread profile; using a straight-cut tap is not recommended for tapered NPT because it can produce inconsistent thread depth. Lubrication is critical; a light thread-cutting oil reduces heat, helps chip evacuation, and improves thread quality. Over time, repeated tapping of the same material with improper drill size can lead to worn taps and degraded seal performance.
titlePrefixFieldsUnitEventTouched?NULL? humana?TODO
Tap drill sizes for common NPT ranges
| NPT size | Tap drill size (in) | Notes |
|---|---|---|
| 1/8 NPT | 0.328–0.335 | Use high-quality tap; ensure straight alignment |
| 1/4 NPT | 0.364–0.375 | Check chart; vary per material |
Got Questions?
What is the standard drill size for 1/8 NPT?
The typical tap drill size for 1/8 NPT is in the range of 0.328–0.335 inches, depending on the tap style and material. Always consult a current tapping chart for your exact application.
For 1/8 NPT, use about a 0.328 to 0.335 inch drill, and check your chart to be sure.
Can I use a larger drill size to make tapping easier?
Using a larger hole than recommended reduces thread engagement and can undermine sealing, especially for NPT. Stick to the chart unless you’re doing a controlled test on scrap material.
No—don’t go larger than the chart unless you’re testing on scrap material.
Does material type affect the recommended drill size?
Yes. Softer materials like aluminum may tolerate the lower end of the range with proper lubrication, while harder metals like stainless steel may require the higher end to form adequate threads without binding.
Material matters—check the chart and use lubrication.
Is the drill size for 1/8 NPT the same across manufacturers?
Most charts align on a similar range, but always verify with the specific manufacturer’s tapping chart since tolerances and tap designs vary.
Check the exact product chart for your tap.
What about lubrication and tap type for 1/8 NPT?
Use a suitable thread-cutting oil and a taper tap designed for NPT. Lubrication reduces heat and aids chip clearance, improving thread quality.
Lubricate and use the right NPT taper tap for best results.
“The right tap drill size is the foundation of leak-free, properly formed NPT threads. Small deviations can cause poor seal or cross-threading.”
Top Takeaways

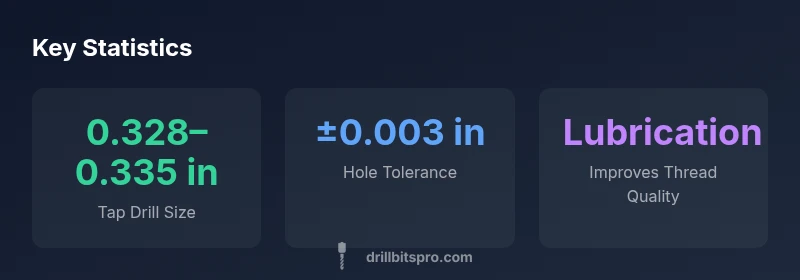

- Start with the recommended tap drill size for 1/8 NPT (0.328–0.335 in).
- Use taper taps for NPT to ensure proper thread formation and sealing.
- Lubrication reduces heat and improves thread quality.
- Always verify drill size with manufacturer charts or a trusted tapping guide.
