NPT 1-8 Tap Drill Size: Pilot Hole Guide for 1/8-27 NPT Taps

Understanding NPT Threads and Tap Drill Size

National Pipe Tapered (NPT) threads are the standard for plumbing fittings in many applications, including hydraulic and pneumatic components. When you tap an NPT hole, you don’t cut straight threads; you create a tapered thread that tightens as the insert advances. The size designation, such as 1/8-27 NPT, combines a nominal bore of 1/8 inch with 27 threads per inch. The corresponding tap drill size is the pilot hole diameter you start with before threading. For the common 1/8-27 NPT configuration, the pilot hole is typically in the low 0.3-inch range, with small adjustments based on material, tap geometry, and lubrication. Understanding these relationships helps you avoid under- or over-tapping, which can lead to leaks or weak joints. As you plan your job, keep in mind that NPT taps are designed to create a gradual taper, so respect depth and chamfer requirements to ensure clean threads.

Determining Pilot Hole Size for npt 1 8 tap drill size

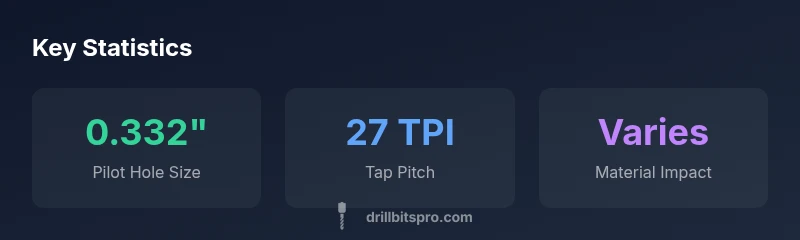

The key variable in achieving reliable NPT threads is the pilot hole diameter, which becomes the anchor for the tapered threading. For npt 1 8 tap drill size, the widely recommended pilot hole is about 0.332 inches (8.44 mm). This figure arises from tapping charts that account for thread pitch, taper angle, and standard material thickness. However, the actual number can shift by a few thousandths, depending on the type of tap (plug vs. taper), the material hardness, and whether a cutting fluid is used. In practice, many shops verify by drilling a test hole in a scrap piece and performing a mock-tap to confirm fit before committing to production parts. If you’re working in high-strength alloys or very soft plastics, expect to dial the hole size slightly up or down within a narrow tolerance band. The goal is consistent thread depth and proper engagement with the pipe core.

Material and Lubrication Effects on Pilot Hole Size

Material choice has a meaningful impact on the optimal tap drill size. Steel, aluminum, brass, and plastics each respond differently to cutting forces and heat generation. Harder materials tend to require more conservative hole sizes to prevent thread tearing, while softer materials may tolerate slightly larger holes for easier tapping and better lubricant flow. Lubrication also plays a crucial role; cutting fluids reduce friction, improve chip evacuation, and help maintain a steady drill path. When machining with a 1/8-27 NPT tap, ensure the workpiece is clean, clamped, and free of burrs. If you notice binding during tapping, stop and reassess the pilot hole diameter, lubrication, and tap alignment before continuing.

Tools and Setup: Drill Bits, Taps, Lubricants

Select a sharp, high-quality drill bit that’s compatible with your tap size. For NPT tapping, use a dedicated NPT tap (27 TPI for 1/8-27) and a corresponding plug or taper style as required. Lubricants are essential: a cutting oil or tapping fluid reduces heat and wear, while ensuring smoother thread cutting. Use a drill press for consistent depth control or a rigid drill with a depth stop to avoid over-drilling. Mark the exact hole depth on the workpiece to prevent over-tapping, especially when working with thin-walled fittings. Deburring after drilling helps avoid chatter and misalignment when the tap is started.

Step-by-Step Procedure: From Pilot Hole to Tapped Thread

1. Secure the workpiece and establish a center point to guide the drill. 2) Drill the pilot hole to the recommended diameter (approximately 0.332 inches for 1/8-27 NPT). 3) Apply tapping fluid and align the tap precisely with the pilot hole. 4) Start cutting slowly, using steady, even pressure to maintain alignment. 5) Tap to the required depth, stopping short of full thread length if the component requires a sealing surface. 6) Back out the tap gradually to remove chips and reduce binding. 7) Deburr the hole and perform a test fit to confirm thread engagement and sealing capability.

Common Pitfalls and How to Avoid Them

• Incorrect pilot hole diameter can lead to cross-threading or poor seal. Always consult the official tapping chart for your material and tap style. • Poor lubrication causes heat buildup and thread damage. Use the right lubricant and reapply as needed. • Taps not aligned with the hole result in eccentric threads. Use a guiding tool or pilot to maintain alignment. • Drilling to too great a depth can compromise wall integrity. Use depth stops and measurement checks. • Deburring is often skipped but is essential to prevent binding and leakage.

Quick Reference: Pilot Hole Size Chart for NPT 1/8-27 and Related Sizes

For quick reference, the pilot hole size for the 1/8-27 NPT tap is typically around 0.332 inches. Other common sizes roughly follow the pattern: 1/4-18 NPT around 0.457 inches and 1/2-14 NPT around 0.670 inches. Always verify with manufacturer charts and consider material-specific adjustments. This section should be used in conjunction with the data table below to confirm proper hole sizes before tapping.

Final Tips for Leak-Free NPT Threads

Ensure a clean, burr-free hole and secure alignment during tapping. Use a suitable lubricant, which helps maintain consistent thread contact and reduces wear on the tap. After tapping, deburr and inspect the thread engagement to verify full seating. When in doubt, perform a test tap in a scrap piece to refine the pilot hole size before applying to production parts.
