Drill Size for 1/4 Tap: A Practical Guide
Master the drill size for tapping a 1/4-20 UNC thread. Learn how to choose and verify the correct drill size, plus practical tips for steel, aluminum, and brass.

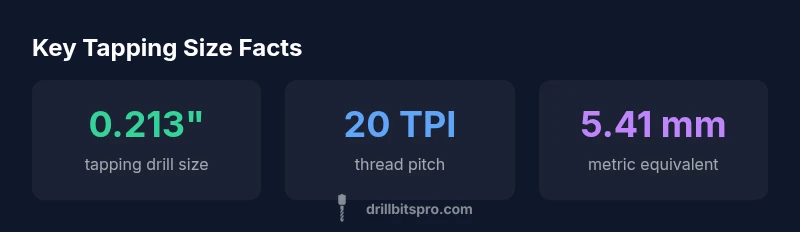

For a 1/4-20 UNC tap, the tapping drill size is 0.213 inches (5.41 mm). This drill size supports correct thread engagement and clean threads on common metals. According to Drill Bits Pro Analysis, 2026, start with this size and verify with charts for your material. Always deburr the hole and use proper lubrication when tapping to minimize thread fatigue.
Understanding the drill size 1/4 tap and why it matters
When you’re preparing to cut internal threads, the choice of drill size—often referred to as the tapping drill size—determines how the threads will form. For a common 1/4 inch bolt with a 20 threads-per-inch (UNC) thread, the standard tapping drill size is 0.213 inches (5.41 mm). This specific size is not arbitrary; it reflects the thread profile (the depth of the threads and the crest-to-root geometry) and the tolerance stack-up of the tap itself. Getting this right reduces the risk of undersized threads (loose fit) or oversized threads (binding or weakening). According to Drill Bits Pro, accurate drill sizing is foundational to reliable tapping in most metals, from mild steel to aluminum.
As you plan a project, consider material behavior, hole depth, and lubrication. These factors influence how well the threads form and how long the tapped hole will perform under load. In practice, starting with the recommended 0.213 in drill and testing on a scrap piece is a prudent approach before committing to production parts.
Key takeaway: the drill size 1/4 tap is not a guess—it’s the tested standard that aligns with the thread geometry and material behavior.
Drill size references for tapping 1/4-20 UNC in common materials
| Hole Scenario | Tap Size | Drill Size (inch) | Notes |
|---|---|---|---|
| 1/4-20 UNC tapping in steel | 1/4-20 UNC | 0.213 | Recommended tapping drill size for steel to ensure full engagement |
| 1/4-20 UNC tapping in aluminum | 1/4-20 UNC | 0.213 | Suitable for aluminum with proper cutting fluid and slower speed |
Got Questions?
What is the drill size for a 1/4-20 tap?
The tapping drill size for 1/4-20 UNC is 0.213 inches (5.41 mm). This size balances thread depth and core material to produce reliable threads. Always verify with material charts when working with hard alloys.
The tapping drill size for 1/4-20 UNC is 0.213 inches. Verify with your material chart.
Can I use a regular 1/4” drill for tapping a 1/4-20 thread?
No. A standard 1/4” drill may not produce the correct hole diameter or hole quality for reliable tapping. Use the recommended tapping drill size, 0.213 inches, and verify with charts for your material.
No. Use the exact tapping drill size, 0.213 inches, for best results.
Does material affect the tapping drill size?
The tapping drill size is the same for many materials, but material hardness and strength affect cutting conditions. For tough materials, slow feeds, lubrication, and robust tooling help maintain thread quality.
Material affects cutting conditions; the drill size stays the same, but you may need slower speeds and lubrication.
What lubricants are recommended when tapping 1/4-20?
Use cutting fluid or tapping oil per your material and tooling. Lubrication reduces tool wear, improves heat dissipation, and helps thread finish.
Use cutting fluid or tapping oil to protect the tap and improve finish.
How can I measure drill size accurately before tapping?
Use calipers or a go/no-go gauge to confirm the hole diameter after drilling. Compare to the 0.213 inch target and deburr before tapping.
Measure with calipers or gauges to ensure you hit the 0.213 inch target.
What’s the difference between taper taps and bottoming taps for this size?
A taper tap starts the thread gradually and is easier for initial alignment; a bottoming tap finishes the thread to full depth. For a through-hole, either can work; for blind holes, plan depth and use appropriate tap type.
Taper taps start gradually; bottoming taps finish to depth. Choose based on hole type.
“Accurate drill sizing is the foundation of clean, precise threads. Choosing the correct tapping drill size minimizes errors and reduces scrap.”
Top Takeaways
- Use 0.213 in (5.41 mm) as the tapping drill size for 1/4-20 UNC threads.
- Always deburr the hole after drilling to ensure clean thread formation.
- Lubricate during tapping to extend tool life and improve finish.
- Verify the drill size with charts or a test hole for your material.
